Digital Dice Using ATTiny 2313

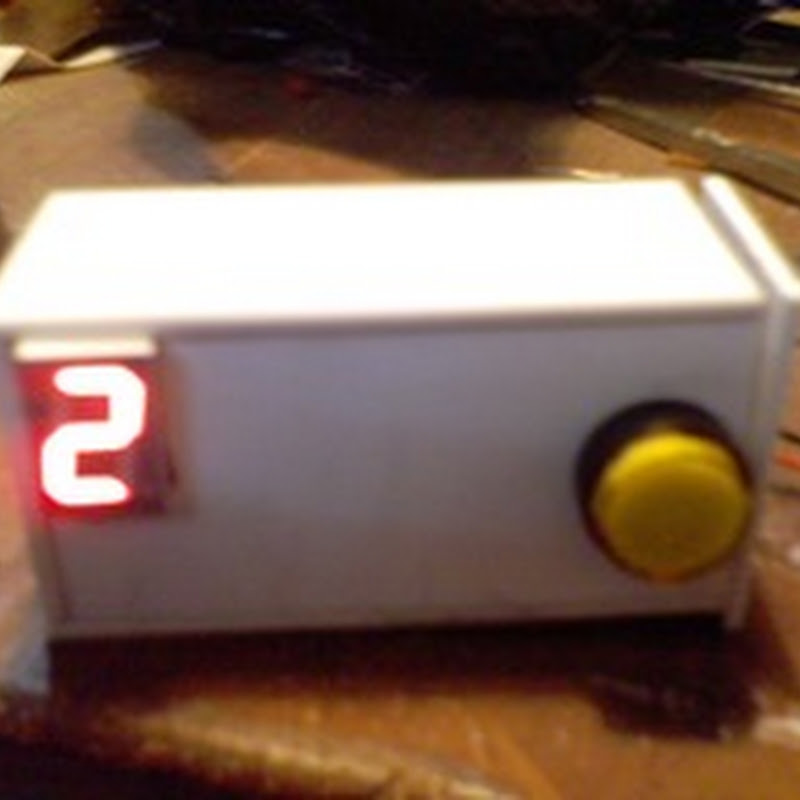

DSC00016

Not too long ago, during a game of Monopoly, I thought to myself; "How the hell do I always end up loosing? I bet these dice are loaded!", and right then the geeky idea of building my own digital dice was born.

Idea
The Idea was to build a dice that:

  • Produced 100% random result
  • Easy to use, Simple button press and ... result
  • Small enough to carry around with a board game
  • Low power consumption, should run on battery power for long
  • Ensure that every one knows that you are a geek ;)

Construction
schematic The hardware is based on an ATTiny 2313 processor, the main features of the hardware:

  • Processor: AVR, ATTiny 2313.
  • 7-Segment LED display (common anode) to display the digits.
  • Thumb Switch to take input from the user
    DSC00018
    Thumb Switch
  • Battery as source of power.

So, first I designed the hardware as per the schematics above onto a simple breadboard.
DSC00011

No Problem, simple circuit. I used headers to connect the 7-Segment LED display, this way, I could remove the display as and when required.
DSC00008
Ok, That's done! Now to work on the battery and regulator circuit. Here I decided to use a LM7805 regulator, along with a 1000uF and a 100uF capacitor, to deal with the casual drop in voltage when the circuit starts drawing current. I used common 9V 6LR61 batteries to power the regulator.
DSC00012
For the casing, I got some thin and light ABS Plastic pieces from my throw away waste.
DSC00006
I cut and filed them to a somewhat desirable size.
DSC00007
Drilled a nice hole for thumb switch.
DSC00013
And.....Done!

Software
I wrote the code for the processor in assembly, what I am showing here is only the skeleton structure. The complete code is available in the download package.

First is the Reset Vector ,GetButtonPress and the ButtonPressed routines:

   1: .include "tn2313def.inc"
   2:
   3: .org 0x0000
   4:     RJMP Reset    //Code Starts from Address 0x0000
   5:
   6: Reset:            //Reset Vector
   7:     RJMP Init
   8:     RJMP GetButtonPress
   9: RJMP Reset
  10:
  11: GetButtonPress:
  12:     SBIC PORTD, 3        //Skip if Bit is Clear on PD3
  13:     RJMP GetButtonPress    //Relative Jump to Label
  14:     RJMP ButtonPressed    //Relative Jump to Label
  15: RJMP GetButtonPress
  16:
  17: ButtonPressed:
  18:     SBIC PORTD, 3      //Skip if Bit is Set on PD3
  19:     RJMP ShowResult      //Relative Jump to ShowResult
  20:     INC    R17                //Increment Register R17
  21:     INC    R16                //Increment Register R16
  22:     CPI    R17, 0xFF       //Compare Immediate R17 and 0xFF
  23:         BREQ ToggleDP //Branch if Equal to ToggleDP
  24:     LDI R18, 0x06     //Load R18 with with Immediate 0x06
  25:     CPSE R18, R16      //Compare, Skip if Equal
  26:     RJMP ButtonPressed//Relative Jump to ButtonPressed
  27:     CLR    R16              //Clear Register R16
  28: RJMP ButtonPressed

The skeleton routine above does not take into account the debounce of the thumb switch. The thumb switch being used is spring loaded, and has a magnetic catch inside it, so the typical debounce would be around ~80ms. Now, running at 8MIPS (internal RC oscillator), in terms of processor cycles, that would be;  1 sec = 8,000,000 instructions; 1ms = 8,000 instructions; 80ms = 64,000 instructions; That means we need to call nop 64,000 times to debounce the switch correctly.


Next we have the ShowResult routine. This basically displays on our 7-Segment display the value of the roll.



   1: ShowResult:
   2:     LDI    R18, 0x01    //Load Immediate R18, with 0x01
   3:     CP    R16, R18    //Compare R16 and R18
   4:         BREQ ShowOne//Branch if Equal to ShowOne
   5:     LDI    R18, 0x02    //Load Immediate R18, with 0x02
   6:     CP    R16, R18    //Compare R16 and R18
   7:         BREQ ShowTwo//Branch if Equal to ShowOne
   8:     LDI    R18, 0x03    //Load Immediate R18, with 0x03
   9:     CP    R16, R18    //Compare R16 and R18
  10:         BREQ ShowThr//Branch if Equal to ShowOne
  11:     LDI    R18, 0x04    //Load Immediate R18, with 0x04
  12:     CP    R16, R18    //Compare R16 and R18
  13:         BREQ ShowFou//Branch if Equal to ShowOne
  14:     LDI    R18, 0x05    //Load Immediate R18, with 0x05
  15:     CP    R16, R18    //Compare R16 and R18
  16:         BREQ ShowFiv//Branch if Equal to ShowOne
  17:     LDI    R18, 0x06    //Load Immediate R18, with 0x06
  18:     CP    R16, R18    //Compare R16 and R18
  19:         BREQ ShowSix//Branch if Equal to ShowSix
  20: RJMP ShowResult

One more important consideration here is Low Power Mode, and automatic turn off (We are running on batteries here, after all). In the final code, I have included a low power and auto turn of routine. This checks to see if the dice is not used for 4 Seconds or more, and then turns off the display and puts the processor and other peripherals in a low power state. See the video of operation below to get a good idea of how this works.



Ok, thats it!! All Done now!!
DSC00015
And it Works!! :D



Video of Operation:








Thats all folks, Untill Next Time!! If you like this entry, Leave a message and Digg this article. Messages always make my day. :)
